W Metal Beam Crash Barrier Drawing

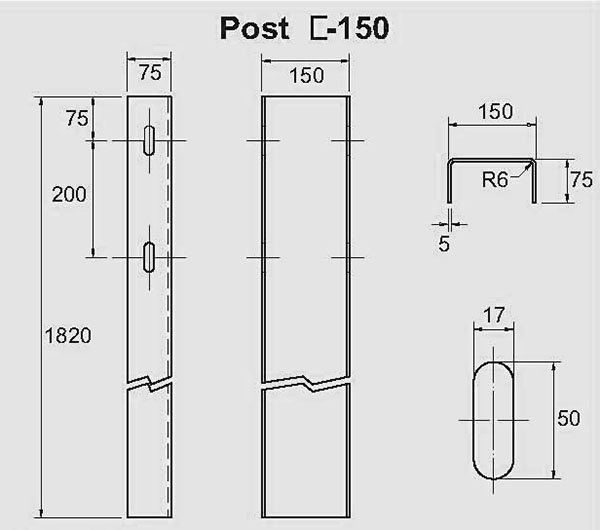

The steel post and the blocking out spacer shall both be channel section of 75mm x 150mm size and 5mm thick.

W metal beam crash barrier drawing.

W beam is the most common roadside crash barrier in use in australia. Crash barrier is committed to providing high quality guardrails and safety components designed to reduce highway fatalities. Semi rigid w shape section galvanised steel highway barrier. With futuristic concepts emerging for ensuring safety and security of lives on road metal crash barrier is an essential and crucial product in today s fast paced life.

W beam guardrail on concrete posts. 710 06 beam guardrail 710 07 cable barrier 710 08 concrete barrier examples of barriers that are not acceptable as a standard run are. Metal crash barriers popularly known as highway guardrails are the need of today and tomorrow. Crash barrier is a professionally managed company scintilla alloys that is engaged in manufacturing sourcing technologically advanced galvanisation equipment and machines.

For a mash tl3 as nzs3845 2015 compliant w beam system please refer to ezy guard smart. Metal crash barriers metal crash barriers are basically road safety system which prevents vehicles from colliding with obstacles such as boulders walls buildings and also prevents vehicles entering into large storm. The w beam type safety barrier shall consist of a steel post and a 3mm thick w beam rail element. If the adjacent barrier is a w beam then the adjacent w beam end can be connected to a transition to thrie beam and then anchored onto the concrete profile barrier according to drawing no.

W beams cold roll formed in thickness of 3 00 mm 2 67 mm raw material conforming to is 5986 grade. Acp supplies two standard types of w beam guardrail 4 0m nll standard panel and 5 0m nll standard panel. Fe 410 fe 360. If the adjacent barrier is a thrie beam or a double thrie beam then the concrete profile barrier end can be connected to the adjacent barrier.

W beam guardrail excluding the type 31 nb4 proprietary system with 12 foot 6 inch post spacing and or no blockouts. The rail shall be 70 cm above the ground level and posts shall be spaced 2m center to center. The system comprises w beam mounted on a post and block configuration with slight variances to meet state specifications. A double w beam barrier shall be as.

Ingal civil products flexbeam guardrail is a semi rigid roadside safety barrier which is deemed to comply with nchrp 350 test level 3. Cold rolled formed section.
